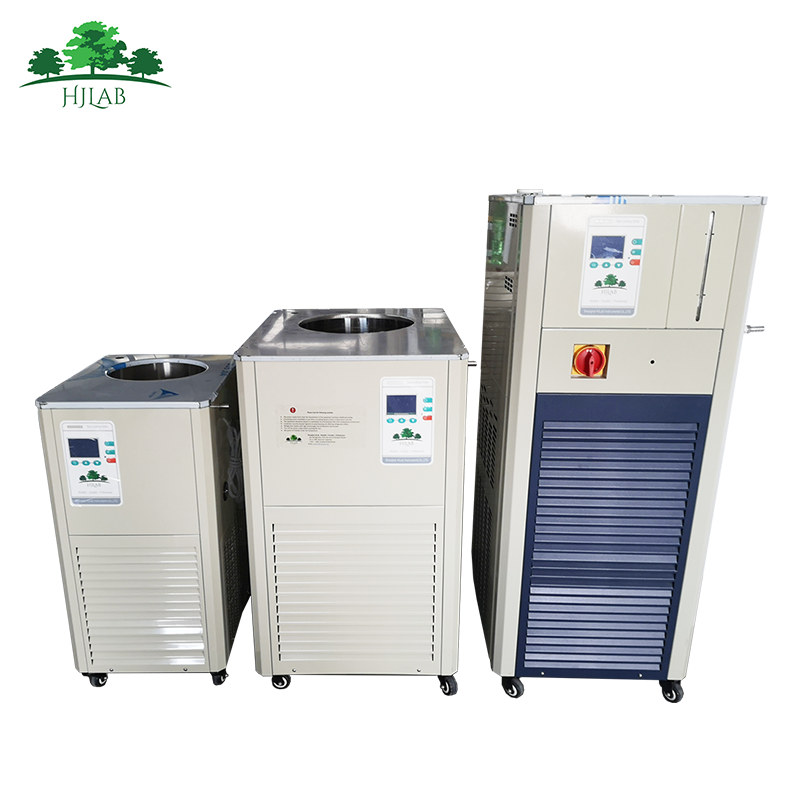

DL-30/30 low-temperature coolant circulating pump

DL-30/30 low-temperature coolant circulating pump Application features:

Low temperature liquid circulation equipment using compression refrigeration method can directly cool test tubes, reaction bottles, etc. for chemical reaction at low temperature, and store chemicals and biological products at low temperature. It can also be used in combination with rotary evaporator, vacuum freeze-drying oven, circulating water multipurpose vacuum pump, etc.

The large capacity open bath is integrated with the external circulation, which can not only be used as a freezing bath, but also provide external coolant.

Digital temperature setting and display, easy to operate.

The refrigeration compressor and other key components are famous American, German and French brands with high reliability and efficiency.

The circulation system adopts SUS304 and macromolecule anti-corrosion materials, which can prevent rust, corrosion and low temperature liquid pollution.

Technical parameters of DL30/30 low-temperature coolant circulating pump:

Operating temperature range (℃): - 30~normal temperature

Temperature stability (℃): ± 2

Refrigerating capacity (W): 10 ℃: 3240; 0℃：2820；- 10℃：1810；- 20℃：1030；- 30℃：520

Rated flow (L/min): 20

Lift (m): 4~6

Volume of liquid storage tank L: 30

Reservoir size (mm): ф four hundred × two hundred and thirty-five

Opening size (mm): ф three hundred and twenty

Optimum ambient temperature (℃): 5~25

Power supply (V/Hz): 220/50

Overall power (W): 1800

Shell material: cold plate electrostatic spraying SPCC

Overall dimension mm: 665L × 545W × 1010H

Weight (kg): 100
