- Vacuum Buchner Filtering Funnel

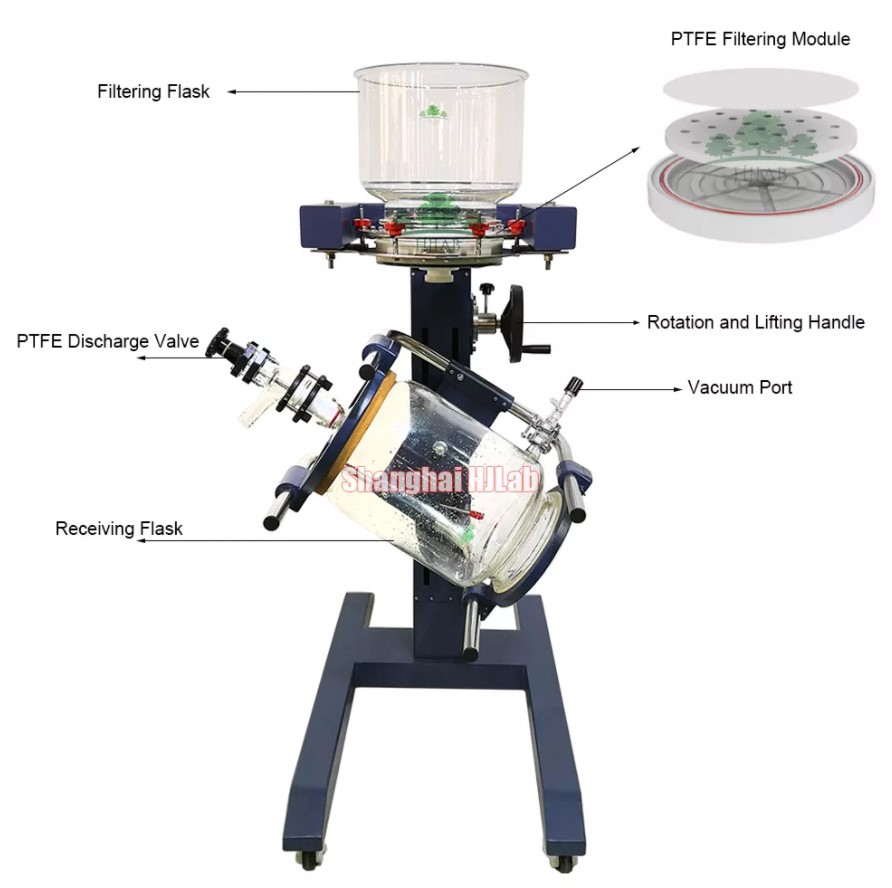

Shanghai HJLab Vacuum Buchner Filtering Funnel is technique whereby suction is applied to a mixture of liquid and solid. It is always ideal whenever there is a need to separate and keep the precipitate safe from a solution by applying the suction technique.
- Specification
|
Model
|
GF-10
|
GF-20L
|
GF-30L
|
GF-50L
|
|
PP Lid
|
PP Lid or Glass Lid | |||
|
Funnel Materials
|
High Borosilicate Glass
|
|||
|
Funnel Capacity
|
10L
|
20L
|
30L
|
50L
|
|
Funnel Filtering Diameter
|
PTFE: 210 mm |
PTFE: 210 mm
PTFE: 280 mm (Optional)
|
||
|
Filtering Membrane
|
Materials: PP / PTFE / PVDF /PEF/ Nylon
Micron: 0.2 μm to 1000 μm for your selection
(Optional, not include)
|
|||
|
Receiving Flask Materials
|
High Borosilicate Glass 3.3
|
|||
|
Receiving Flask
|
10L
|
20L
|
30L
|
50L
|
|

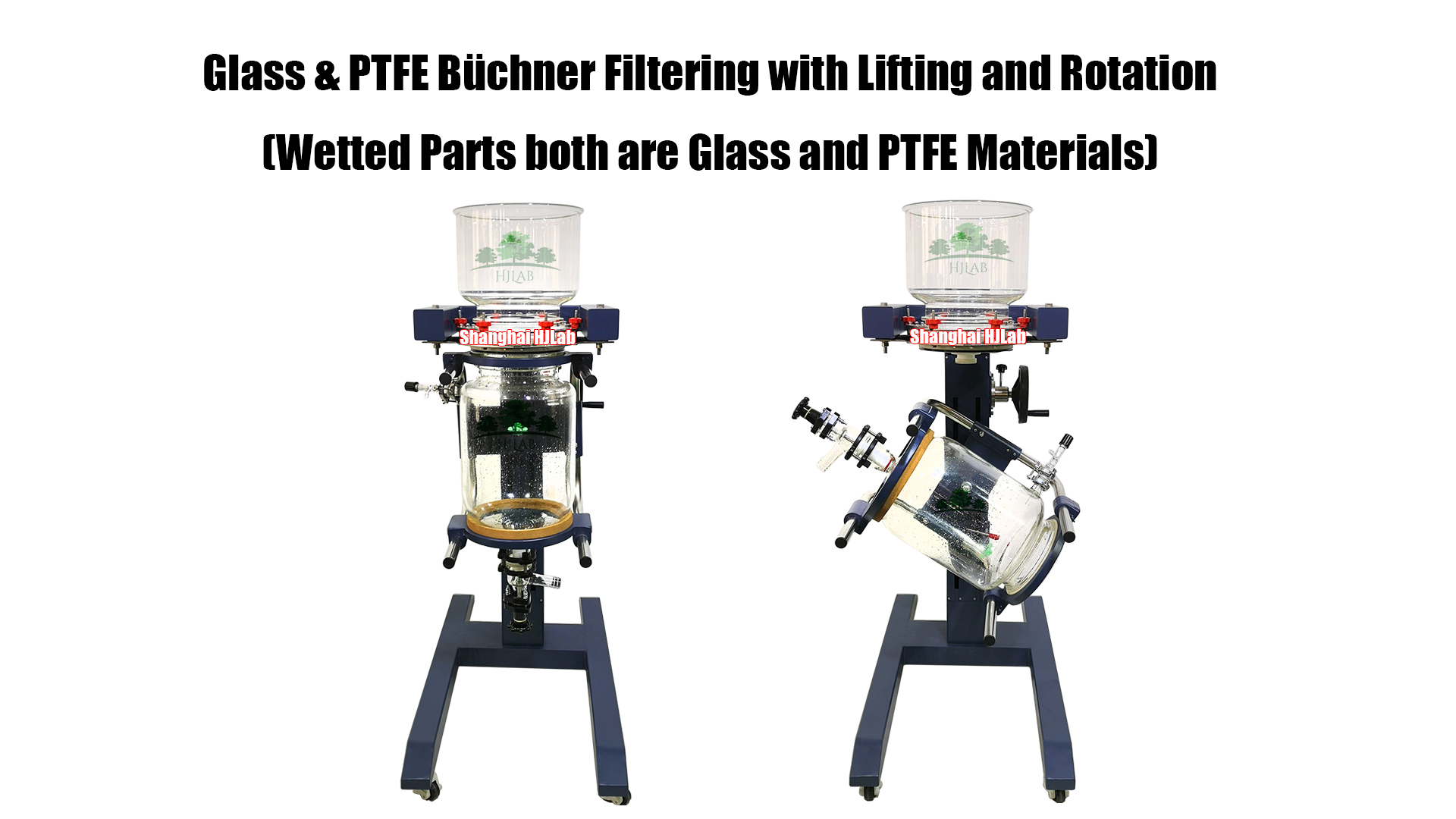

Manual Lifting & Tilting Design
|
||||
|
Sealing
|
PTFE
|
|||
|
Discharge Valve
|
Glass Discharge Valve with PTFE open/close
|
|||
|
Swivel Casters
|
Equipped, 4 pcs
|
|||
|
|
||||
|
Vacuum Pump
|
3 options:
1) Rotary Vane Vacuum Pump
2) Water Jet Aspirator Vacuum Pump
3) Diaphragm Vacuum Pump (Oil-Free, Water-Free)
|
|||
