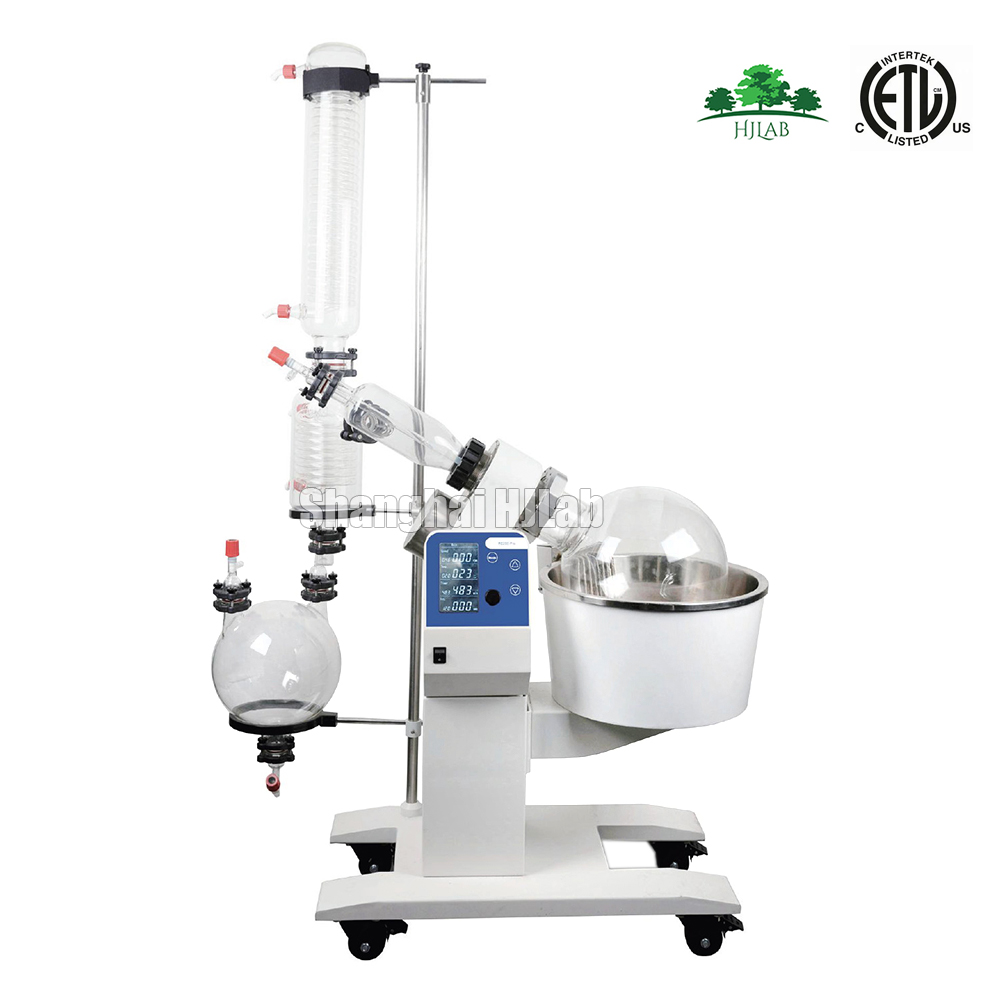

- ETL Certificate 20L Rotary Evaporator - Features
-
- Large LCD display with heating temperature, rotation speed, cockwise & anti-clockwise time information
-
- One-click automatic motor lifting, smooth and slient
-
- Water / Oil Heating Bath with wide temeprature range from RT to 180°C
-
- Rotation Speed range from 10 to 150 RPM, and interval operation in clockwise and anti-clockwise directions for drying process
-
- Three-layers high efficiency condensing tube with large area and strong evaporation
-
- Patented connector for evaporating flask, easy and quick installation
-
- PTFE double sealing ring with excellent sealing performance
-
- Switch valve for continuous collecting the recovered solvents without compromising the system vacuum and continuous distillation operations
- HJLab Pilot Scale Rotary Evaporator - Specifications
| Specifications | RE200-Pro | |
| Performance | Temperature range | Room temp. ~180℃ (both water and oil) |
| Control Accuracy | Water: ±1℃ Oil: ±3℃ | |
| Rotation Speed | 10~150rpm | |
| Evaporation capacity | Max.4.0L/h (water) | |
| Ultimate vacuum | Less 2.6hpa | |
| Function | Temperature control method | Micro processer PID control |
| Display | LCD (temperature/speed/clockwise and Anti-clockwise/time) | |
| Stroke Displacement | Automatic 180mm | |
| Safety features | Motor over-current protection, Residual Current Device, lifting overload protection, Boil-dry protection, over-temperature protection |
|
| Glasswares | Sample flask | Round flask 20L |
| Receiving flask | Round flask 10L with drain valve | |
| Condenser | Two-section vertical triple serpentine condenser, cooling surface 1.2m² |
|
| Connection | Heating bath size | Ø 450×240mm |
| Takeover caliber | Cooling/suction nozzle outer diameter 16mm, vacuum pump nozzle outer diameter 16mm |
|
| Dimension[D×W×H] | 1160×600×1860mm | |
| Voltage/Frequency | 220V/50~60Hz | |
| Power | 4600w | |
| Heating Power | 4400w | |
