HJLab Filter Reactor is a compact system that integrates the functionality of a reactor and a filter in one system. The result is a seamless workflow for crystallisation processes. Our Benchtop Filter Reactor performs synthesis of crystalline products and subsequent filtration/washing cycles and its full jacket design allows reactions to happen efficiently due to excellent thermal transfer.
Capacity
300ml
500ml
1000ml
2000ml
3000ml
5000ml

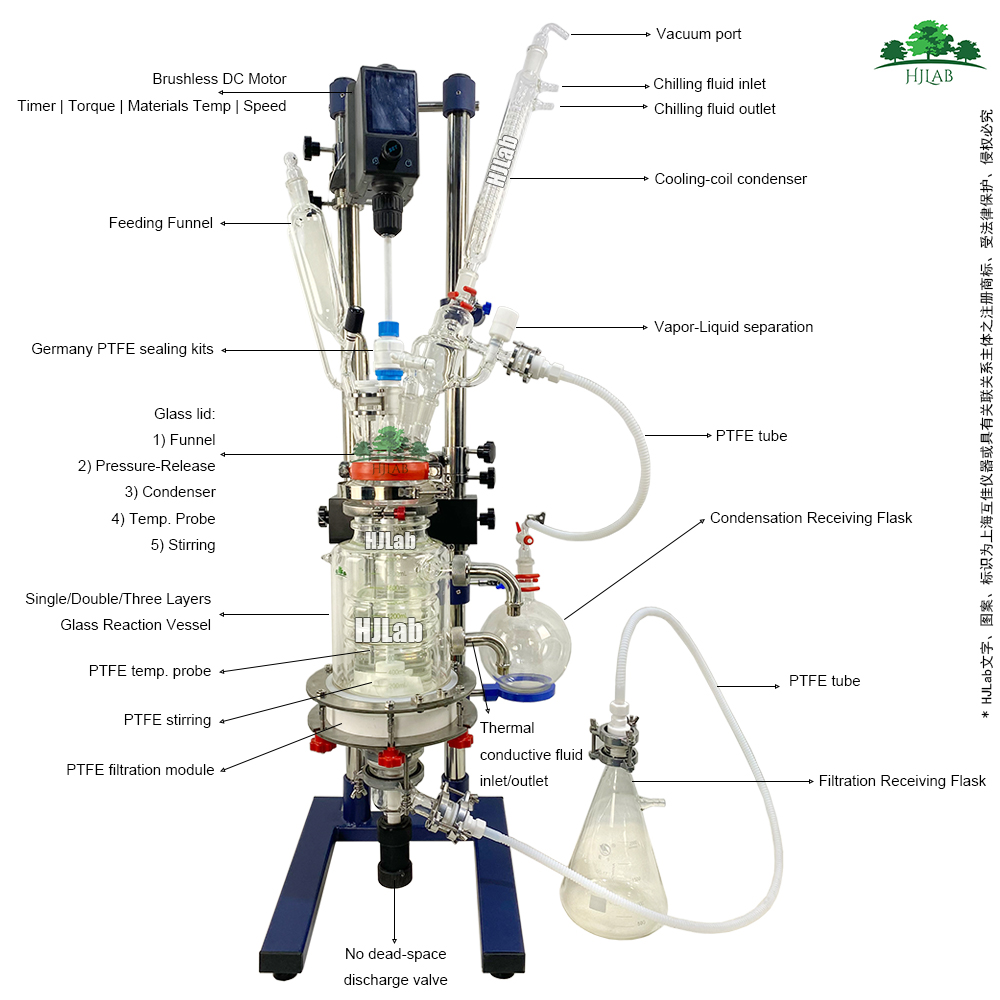

  • Filter Reactor (Nutsche Filter)


HJLab Benchtop Filter Reactor is a compact system that integrates the functionality of a reactor and a filter in one system at a benchtop scale. The result is a seamless workflow for crystallisation processes. Our Benchtop Filter Reactor performs synthesis of crystalline products and subsequent filtration/washing cycles and its full jacket design allows reactions to happen efficiently due to excellent thermal transfer.

Filtration is assisted by either vacuum or gravity, and the resulting product cake can be dried under vacuum. A quickly removable filtration part makes it easy to collect wet product cake or dried powder, change the filter cloth, and clean the filter. The filter membrane/cloth can be chosen based on your process need.


    • Reaction, filtration and washing in one vessel
    • Contamination-free material processing
    • Vessel swing/rotating mechanism for easy product collection

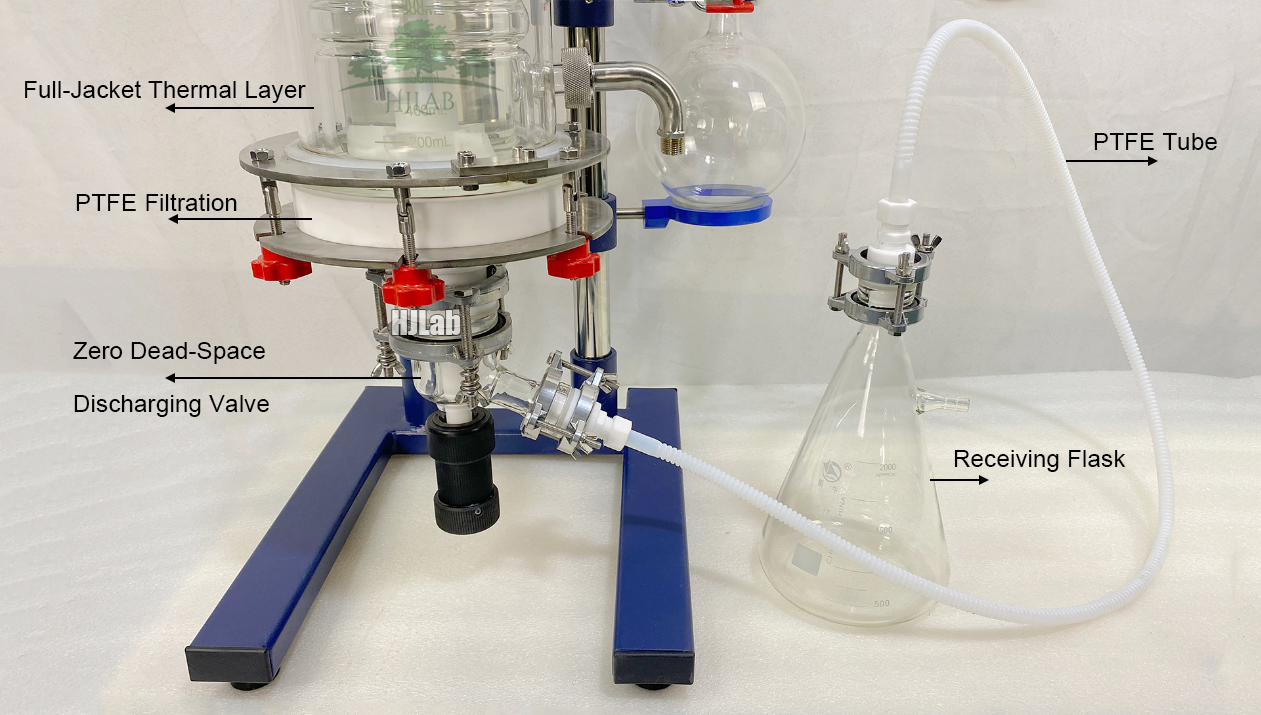

  • PTFE Filtration Module




  • PTFE Filtration Module


Items

Details

Glass Materials

High Borosilicate Glass 3.3

Wetted Parts

Glass and PTFE

Reaction Vessel Capacity

500ml, 1000ml, 2000ml, 3000ml, 5000ml

Thermal Jacket

Full Jacket Design

Optional (Ring Baffles within the Thermal Jacket)

Vacuum Jacket

Optional (Triple Layers Glass Vessel)

Filtration Area

78 cm² (500ml, 1000ml)

113 cm² (2000ml)

176 cm² (3000ml, 5000ml)

Filtration Micron

Micron: 0.2μm to 200μm (depends on your materials)

Filtration Materials: PTFE membrane or PTFE fabric or Glass Disc

Note: Not included by default

Stirring Motor

DC Brushless Motor, 50W, 100W, 150W

AC Motor with Gear Reducer: 120W, 250W

Explosion-Proof Motor: 180W, 250W

Stirring Range: 50 ~ 2000 RPM

Realtime Display:  Mixing Speed, Materials Temperature, Torque

Mixing Sealing

Standard: HJLab PTFE + Ceramic bearing



Optional: Germany PTFE sealing kits

Condenser

Cooling Coil Condenser

Dropping Feeding Funnel

Dropping Feeding Funnel with PTFE Metering Valve and Equalizing Arm

Glass Lid

5 Openings:

1) Dropping Feeding Funnel

2) Stirrer

3) Temperature Probe

4) Condenser Reflux

5) Reserved (By default: Pressure Release)

Stirring Impeller

PTFE Anchor Type

PTFE Pitched Paddle Type

PTFE Frame Type



Operating Temperature

-90℃   to  +230℃

Operating Pressure

Full Vacuum to Atmospheric Pressure

Operating Jacket Pressure

Up to +0.5 bar (0.05 MPa)



Power Supply

100V ~ 240V, 50Hz/60Hz

  • Turnkey Package
