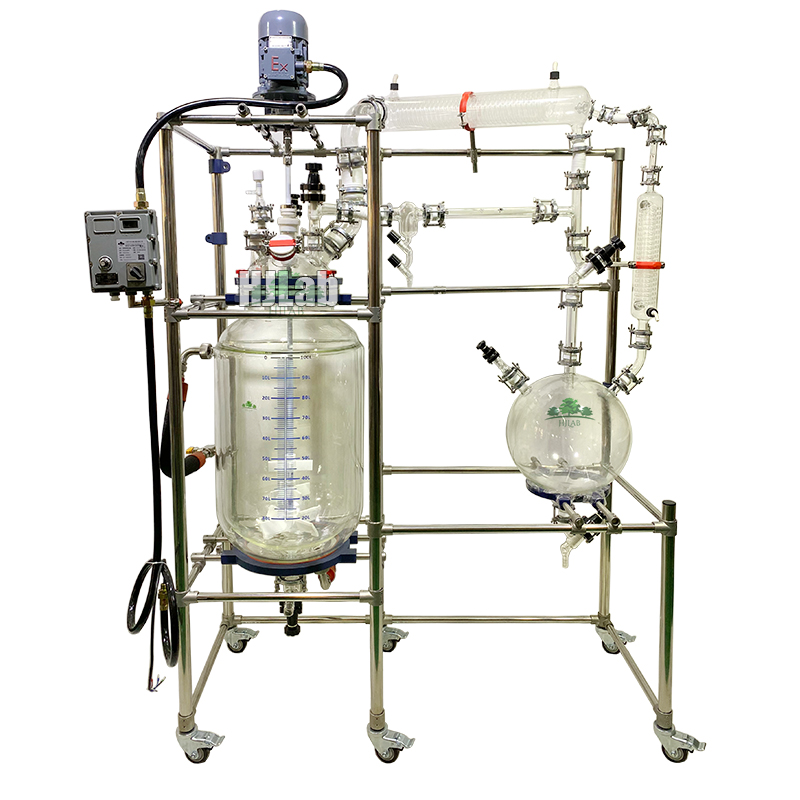

Pilot Plant Chemical Synthesis 100L Explosion Proof Jacketed GLass Reactor with no liquid-flooding phenomenon during distillation evaporation
Pilot Plant Chemical Synthesis 100L Explosion Proof Jacketed GLass Reactor with no liquid-flooding phenomenon during distillation evaporation
Pilot Plant Chemical Synthesis 100L Explosion Proof Jacketed GLass Reactor with no liquid-flooding phenomenon during distillation evaporation
Pilot Plant Chemical Synthesis 100L Explosion Proof Jacketed GLass Reactor with no liquid-flooding phenomenon during distillation evaporation
Pilot Plant Chemical Synthesis 100L Explosion Proof Jacketed GLass Reactor with no liquid-flooding phenomenon during distillation evaporation
Pilot Plant Chemical Synthesis 100L Explosion Proof Jacketed GLass Reactor with no liquid-flooding phenomenon during distillation evaporation

Pilot Plant Chemical Synthesis 100L Explosion Proof Jacketed GLass Reactor with no liquid-flooding phenomenon during distillation evaporation

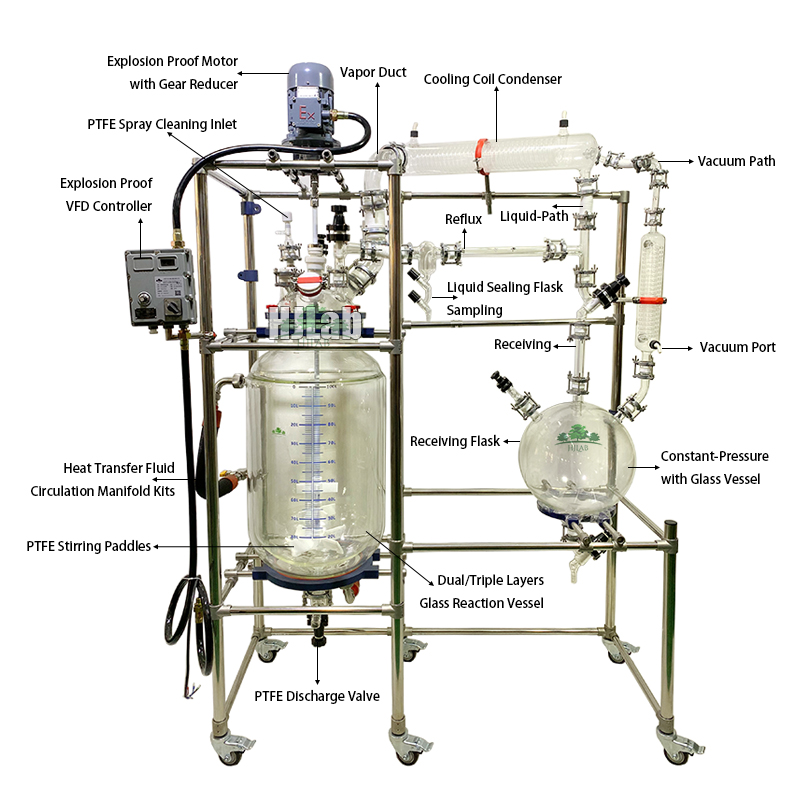

Avoid liquid-flooding phenomenon during distillation evaporation Explosion Proof Motor with gear reducer Explosion Proof Variable Frequency Drive Controller Wetted Parts are Glass and PTFE Glass Lid with 8 Openings PTFE Stirring Sealing and Ceramic Bearing 3-Layers PTFE Paddles PTFE Spray to Clean Inside of Glass Vessel Heat Transfer Fluid Recirculating Manifold Kits Glass/PTFE Discharge Valve
$4,150.00 USD $0.00 USD
Explosion Proof Motor and Controller
Provided
Jacketed Glass Vessel
50L
100L
Quantity
Only 10 left

Pilot Plant Chemical Synthesis 100L Explosion Proof Jacketed GLass Reactor with no liquid-flooding phenomenon during distillation evaporation

  • Pilot Plant Chemical Synthesis 100L Explosion Proof Jacketed GLass Reactor with no liquid-flooding phenomenon during distillation evaporation


  • Avoid liquid-flooding phenomenon during distillation evaporation
  • Explosion Proof Motor with gear reducer
  • Explosion Proof Variable Frequency Drive Controller
  • Wetted Parts are Glass and PTFE
  • Glass Lid with 8 Openings
  • PTFE Stirring Sealing and Ceramic Bearing
  • 3-Layers PTFE Paddles
  • PTFE Spray to Clean Inside of Glass Vessel
  • Heat Transfer Fluid Recirculating Manifold Kits
  • Glass/PTFE Discharge Valve



Pilot Plant Chemical Synthesis 100L Explosion Proof Jacketed GLass Reactor with no liquid-flooding phenomenon during distillation evaporation



  • General Specifications


Items

Details

Glass Materials

High Borosilicate Glass 3.3

Wetted Parts

Glass and PTFE

Reaction Vessel Capacity

5L, 10L, 20L, 30L, 50L, 80L, 100L, 150L, 200L

Vertical Baffles inside of the vessel (Optional)

Thermal Jacket

Ring Baffles within the Thermal Jacket (5L, 10L, 20L, 30L)

Full Jacket Design (5L, 10L, 20L, 30L)

Filtration Area

ID215 Flange: 346 cm² (5L, 10L, 20L, 30L, 50L)

ID280 Flange: 615 cm² (30L, 50L, 80L, 100L)

ID400 Flange: 1,256 cm² (50L, 80L, 100L, 150L, 200L)

Filtration Micron

Micron: 0.2μm to 200μm (depends on your materials)

Filtration Materials: PTFE



Note: Not included by default

Stirring Motor

DC Brushless Motor, 50W, 100W, 150W

AC Motor with Gear Reducer: 120W ~ 1500W

Explosion-Proof Motor: 180W, 250W, 370W, 550W, 750W, 1500W



Stirring Range: 50 ~ 600 RPM



Realtime Display:  Mixing Speed, Materials Temperature

Mixing Sealing

PTFE + Mechanical

Optional: Magnetic coupling seal

Condenser

Cooling Coil Condenser

Dropping Feeding Funnel

Dropping Feeding Funnel with PTFE Metering Valve and Equalizing Arm

Glass Lid

Diameter: DN215, DN280, DN400 for your selection



7 Openings:

1) Dropping Feeding Funnel

2) Solid Materials Feeding

3) Stirrer

4) Liquid-Feeding

5) Temperature Probe

6) Condenser Reflux

7) Reserved (By default: Pressure Release)

8) Spray Cleaning or PH measurement (Optional)

Stirring Impeller

PTFE Anchor Type

PTFE Pitched Paddle Type

PTFE Frame Type



Operating Temperature

-90℃   to  +230℃

ΔT - Thermal Shock Resistance

90℃ (Double Wall)

Operating Pressure

Full Vacuum to Atmospheric Pressure

Operating Jacket Pressure

Up to +0.5 bar (0.05 MPa)



Power Supply

100V ~ 240V, 50Hz/60Hz
