Pilot Plant Scale Chemical Synthesis 100L Explosion Proof Jacketed GLass Reactor with Dual Condensed Receiving Flask
Pilot Plant Scale Chemical Synthesis 100L Explosion Proof Jacketed GLass Reactor with Dual Condensed Receiving Flask
Pilot Plant Scale Chemical Synthesis 100L Explosion Proof Jacketed GLass Reactor with Dual Condensed Receiving Flask
Pilot Plant Scale Chemical Synthesis 100L Explosion Proof Jacketed GLass Reactor with Dual Condensed Receiving Flask
Pilot Plant Scale Chemical Synthesis 100L Explosion Proof Jacketed GLass Reactor with Dual Condensed Receiving Flask
Pilot Plant Scale Chemical Synthesis 100L Explosion Proof Jacketed GLass Reactor with Dual Condensed Receiving Flask

Pilot Plant Scale Chemical Synthesis 100L Explosion Proof Jacketed GLass Reactor with Dual Condensed Receiving Flask

Explosion Proof Motor with gear reducer Explosion Proof Variable Frequency Drive Controller High Borosilicate Glass Glass Lid with 8 Openings PTFE Stirring Sealing and Ceramic Bearing Cooling Condenser and Dispenser T-Shaped Adapter for Dual Receiving Flask 3-Layers PTFE Paddles PTFE Spray to Clean Inside of Glass Vessel Heat Transfer Fluid Recirculating Manifold Kits Glass/PTFE Discharge Valve
Model
Explosion Proof Jacketed GLass Reactor with Dual Condensed Receiving Flask
Capacity
50L
100L
150L

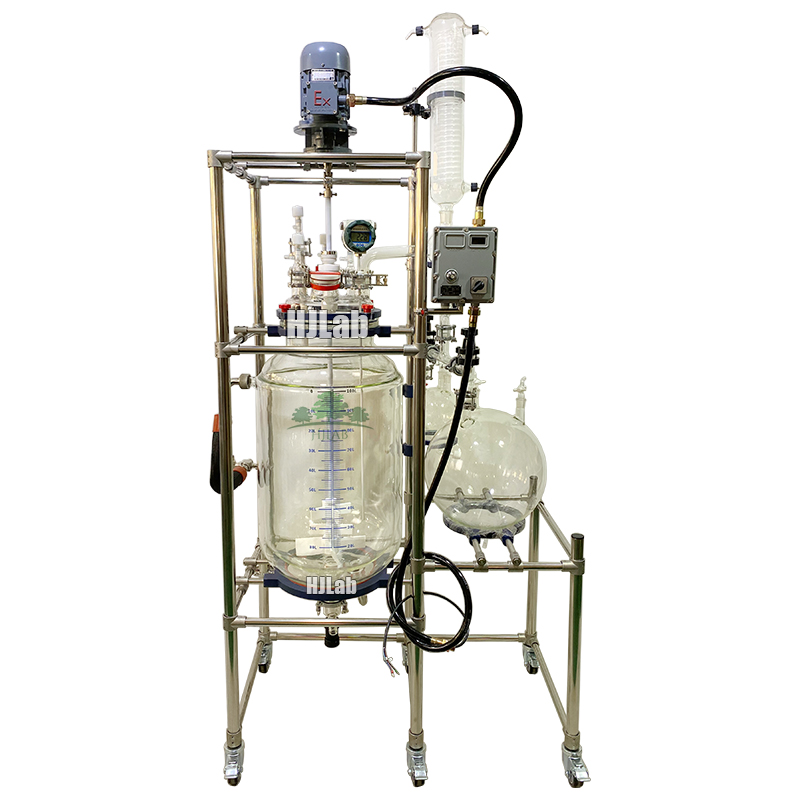

Agitated Nutsche Filtering Chemical Solid-Phase-Synthesis Jacketed Glass Reactor with Lifting and Tilting and Explosion Proof Design

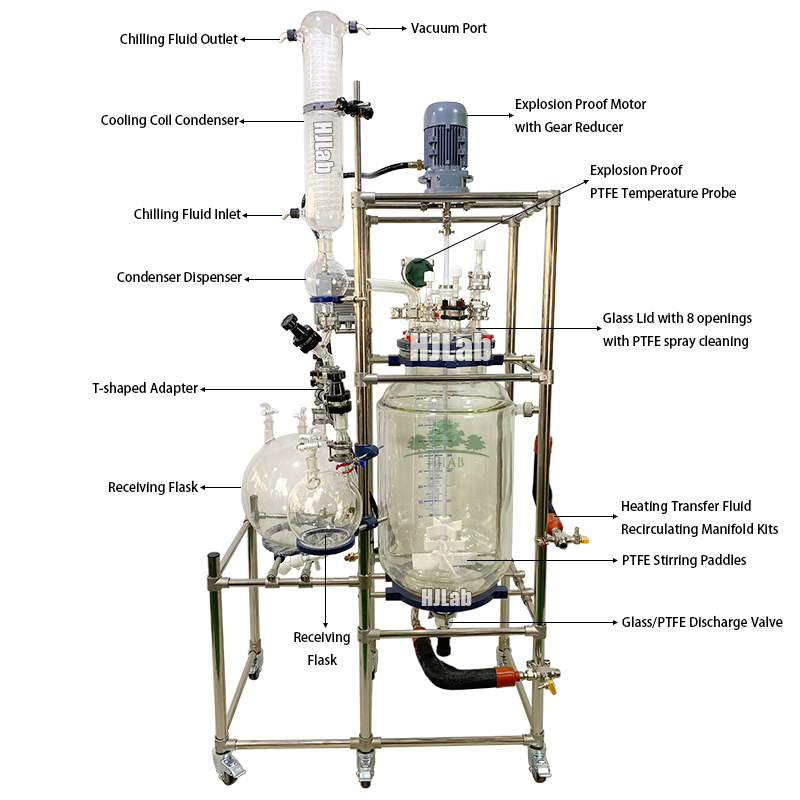

  • Pilot Plant Scale Chemical Synthesis 100L Explosion Proof Jacketed Glass Reactor with Dual Condensed Receiving Flask


    • Explosion Proof Motor with Gear Reducer

    • Explosion Proof Variable Frequency Drive Controller
  •
    • High Borosilicate Glass with acid-resistance and -80C to +230C working temperature range.
  •
    • Glass Lid with 8 Openings
  •
    • PTFE Stirring Sealing and Ceramic Bearing
  •
    • Cooling Condenser and Dispenser
  •
    • T-Shaped Adapter for Dual Receiving Flask
  •
    • 3-Layers PTFE Paddles
  •
    • PTFE Spray to clean Inside of Glass Vessel
  •
    • Heating Transfer Fluid Recirculating Manifold Kits
  •
    • Glass/PTFE Discharge Valve without any dead-space



Pilot Plant Scale Chemical Synthesis 100L Explosion Proof Jacketed GLass Reactor with Dual Condensed Receiving Flask



  • General Specifications


Items

Details

Glass Materials

High Borosilicate Glass 3.3

Wetted Parts

Glass and PTFE

Reaction Vessel Capacity

5L, 10L, 20L, 30L, 50L, 80L, 100L, 150L, 200L

Vertical Baffles inside of the vessel (Optional)

Thermal Jacket

Ring Baffles within the Thermal Jacket (5L, 10L, 20L, 30L)

Full Jacket Design (5L, 10L, 20L, 30L)

Filtration Area

ID215 Flange: 346 cm² (5L, 10L, 20L, 30L, 50L)

ID280 Flange: 615 cm² (30L, 50L, 80L, 100L)

ID400 Flange: 1,256 cm² (50L, 80L, 100L, 150L, 200L)

Filtration Micron

Micron: 0.2μm to 200μm (depends on your materials)

Filtration Materials: PTFE



Note: Not included by default

Stirring Motor

DC Brushless Motor, 50W, 100W, 150W

AC Motor with Gear Reducer: 120W ~ 1500W

Explosion-Proof Motor: 180W, 250W, 370W, 550W, 750W, 1500W



Stirring Range: 50 ~ 600 RPM



Realtime Display:  Mixing Speed, Materials Temperature

Mixing Sealing

PTFE + Mechanical

Optional: Magnetic coupling seal

Condenser

Cooling Coil Condenser

Dropping Feeding Funnel

Dropping Feeding Funnel with PTFE Metering Valve and Equalizing Arm

Glass Lid

Diameter: DN215, DN280, DN400 for your selection



7 Openings:

1) Dropping Feeding Funnel

2) Solid Materials Feeding

3) Stirrer

4) Liquid-Feeding

5) Temperature Probe

6) Condenser Reflux

7) Reserved (By default: Pressure Release)

8) Spray Cleaning or PH measurement (Optional)

Stirring Impeller

PTFE Anchor Type

PTFE Pitched Paddle Type

PTFE Frame Type



Operating Temperature

-90℃   to  +230℃

ΔT - Thermal Shock Resistance

90℃ (Double Wall)

Operating Pressure

Full Vacuum to Atmospheric Pressure

Operating Jacket Pressure

Up to +0.5 bar (0.05 MPa)



Power Supply

100V ~ 240V, 50Hz/60Hz



  • More Pictures


Lifting Tilting Jacketed Glass Reactor with Dual Stages Condenser without Bottom Discharge Valve

Jacketed Glass Reactor + Rotary Evaporator + Turnkey Package Solution Provider

Jacketed Glass Reactor with Turnkey Package: Heating Circulator, Recirculating Chiller, Vacuum Pump and Dynamic Temperature Controller TCU
