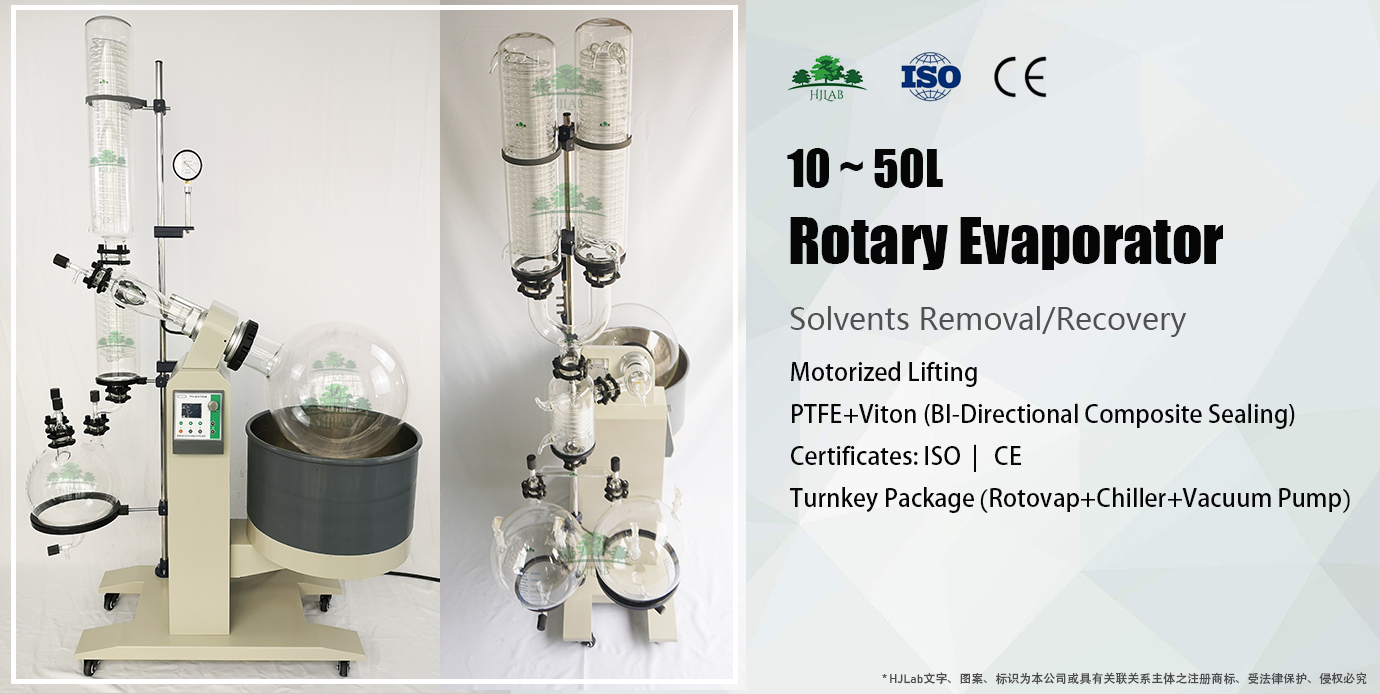

RE-5220 Large Rotary Evaporator
Dec 12,2022 | Shanghai HJLab
RE-5220 large rotary evaporator is suitable for evaporation, distillation and chemical separation experiments. Excellent sealing performance; Large capacity, large caliber rotary bottle, large evaporation area; It is placed in the bath, heated while rotating, and equipped with a pressure reducing device to make the solvent evaporate efficiently. It can form a supporting system with circulating water type multipurpose vacuum pump, circulating cooler, etc. to meet the production and experimental conditions.
Advantages of RE-5220 Large Rotary Evaporator
● The glass components are high borosilicate glass 3.3, with excellent physical and chemical properties.
● LCD, digital display of temperature and speed, one button shuttle setting.
● Over temperature protection device is provided to prevent dry burning accidents.
● Main cooling+auxiliary cooling, high efficiency three reflux condenser, with large condensing area and high recovery rate.
● The three-way bottle made of high borosilicate glass acts as a buffer to prevent the materials in the rotary bottle from boiling into the condenser and ensure the normal distillation.
● "Teflon+fluororubber double sealing ring" technology is adopted to ensure the sealing performance.
● The interface design of the collection bottle is reasonable, so that the discharge of the collected liquid will not affect the continuous distillation process.
● The bath adopts electric lifting, which is easy to operate; Thermal insulation protective sleeve is set outside the groove to prevent scalding.
● Teflon discharge valve, corrosion resistant and pollution-free.
● The glass components are connected with quick installation flanges, which are easy to remove and install.
● Caster structure with brake device, convenient for moving equipment and installation and positioning.
